- Cleaning Width: 12 inches
- Motor Power: 7-amp commercial-grade motor
- Filtration: Shake-out bag with large dust capacity

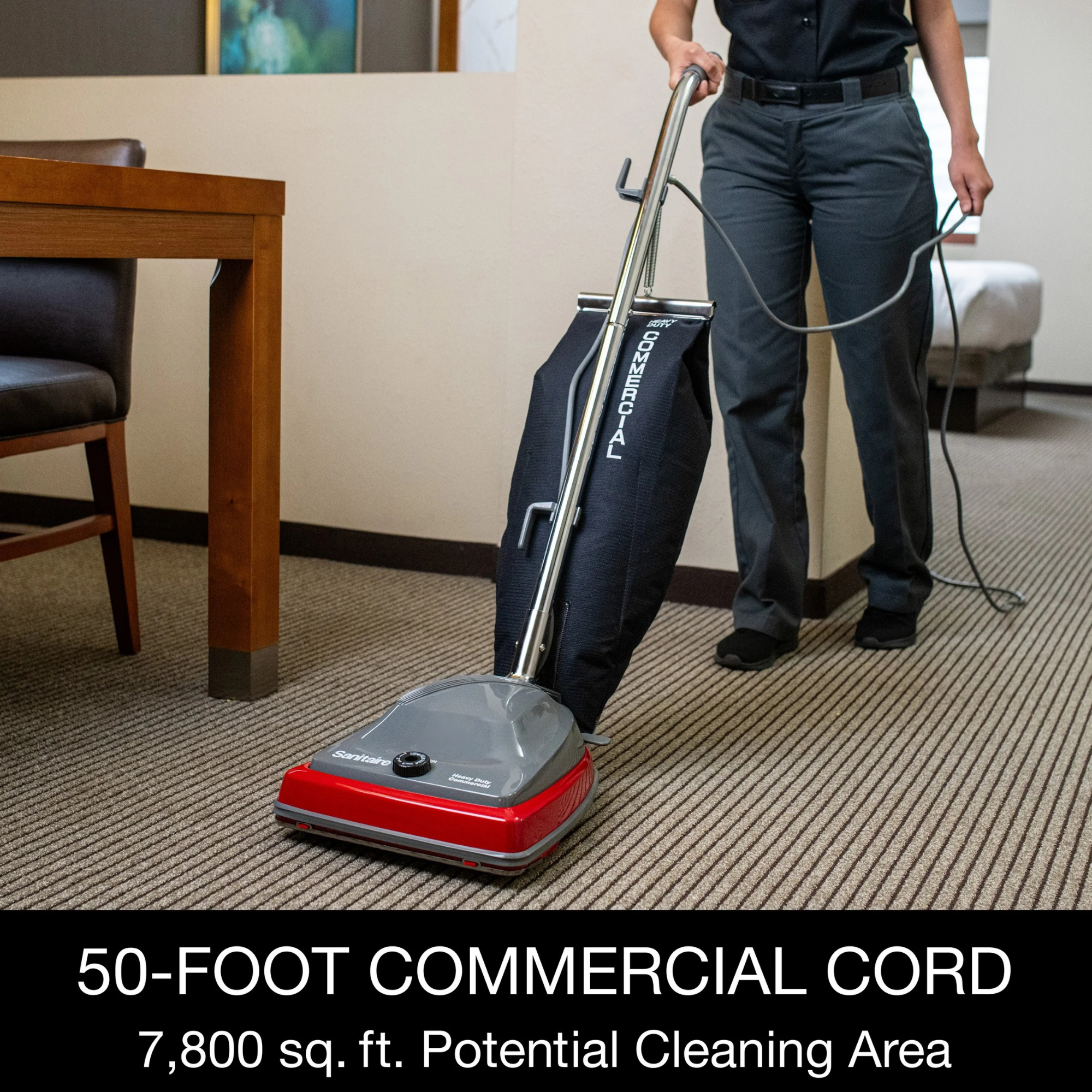

- Cord Length: 50-foot commercial-grade power cord
- Weight: 15.8 lbs for easy maneuverability
- Durability: Chrome hood and metal brush roll for long-lasting performance
- Noise Level: 79 dBA for quieter operation
- Warranty: 2-year limited commercial warranty
Product Description:

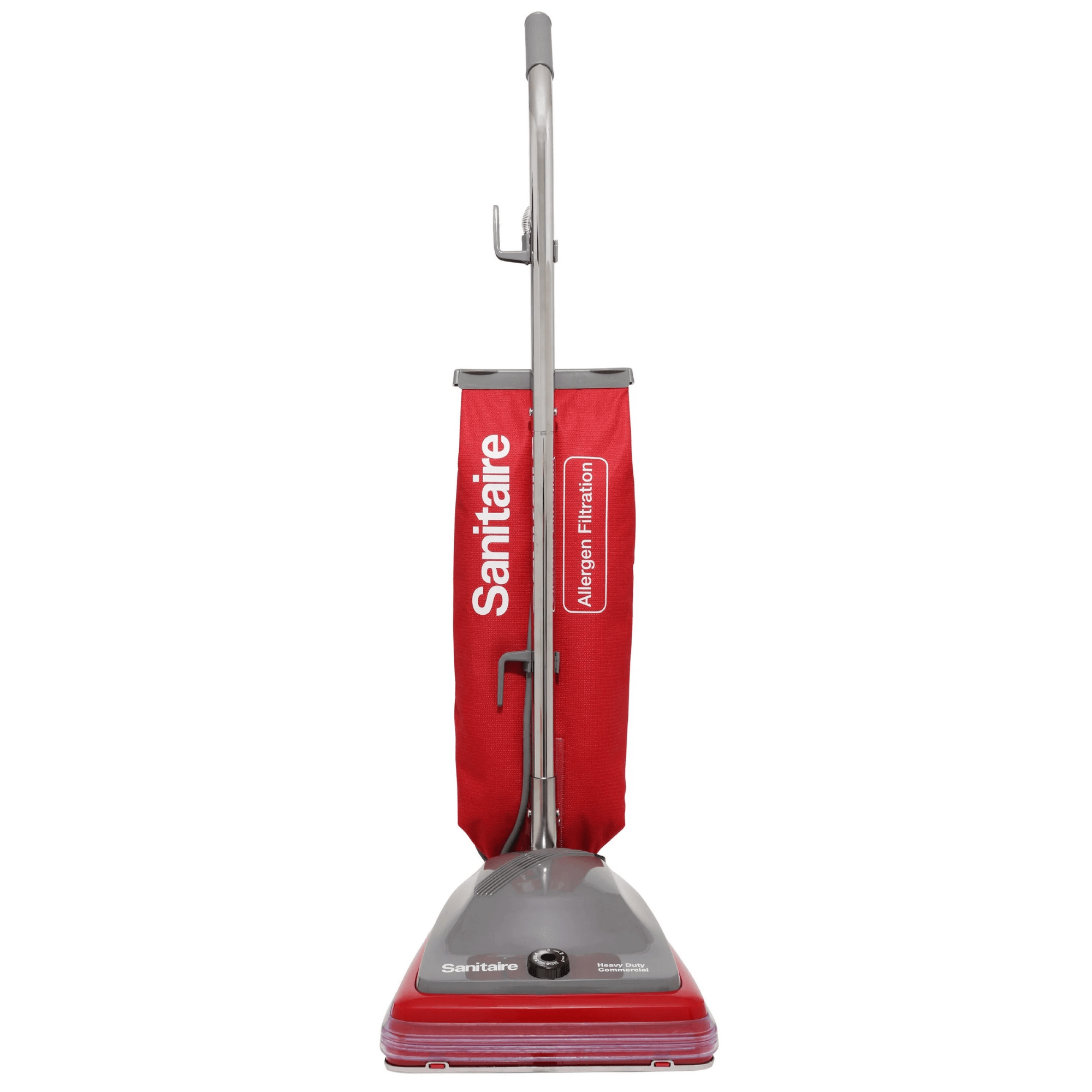

The Sanitaire Tradition SC688B Commercial Upright Vacuum Cleaner is built for heavy-duty cleaning in hotels, motels, and commercial spaces. Featuring a durable chrome hood and a powerful 7-amp motor, this vacuum provides consistent suction for deep cleaning carpets and high-traffic areas. The 50-foot power cord allows for extended reach without frequent unplugging, making it ideal for large spaces.

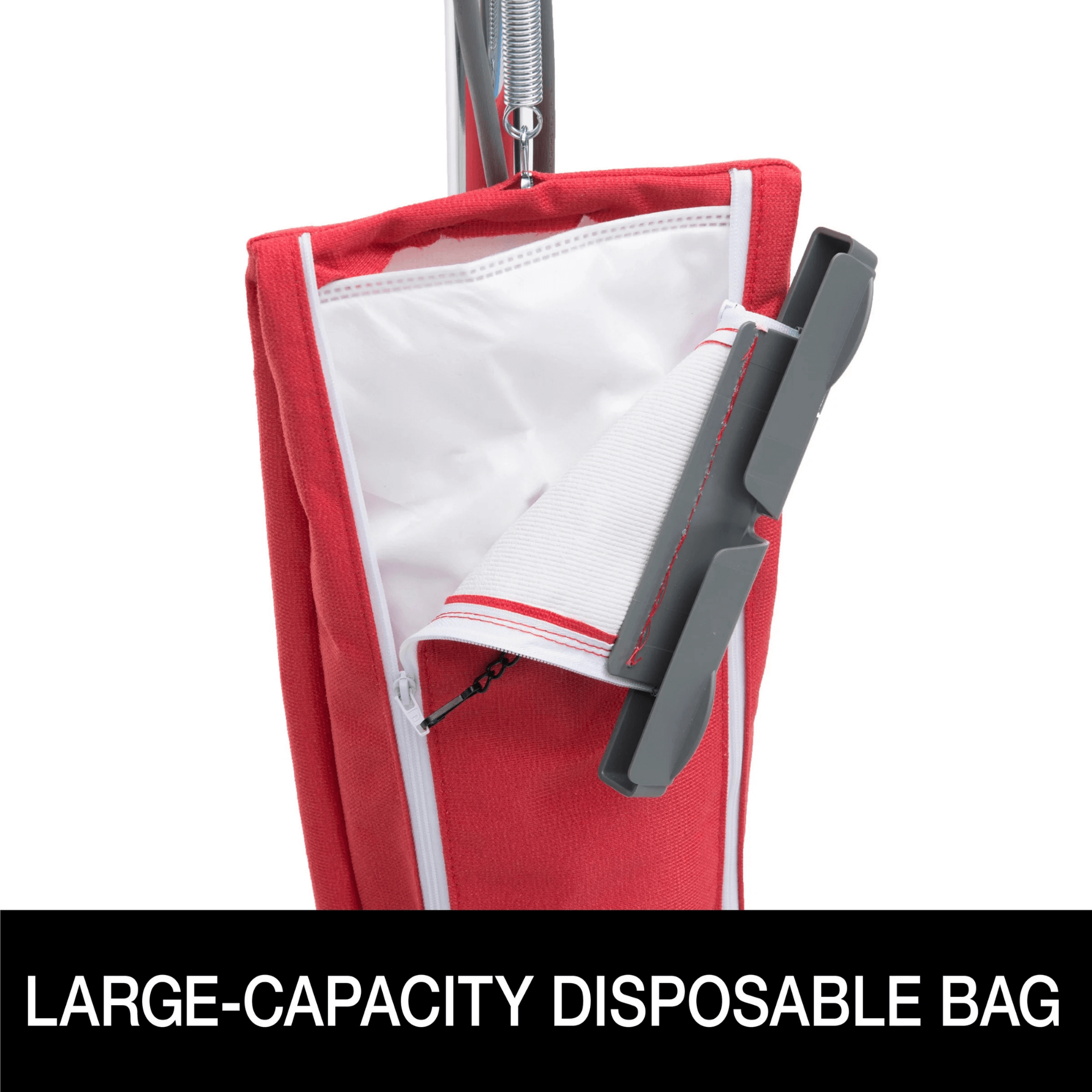

The shake-out bag system offers a cost-effective and eco-friendly dust containment solution, holding a large capacity of debris before needing to be emptied. With a metal brush roll, reinforced base plate, and ball-bearing construction, this vacuum ensures longevity even in demanding environments.
Sanitaire Tradition SC688A Parts List
| Key | Part # | Description |
|---|---|---|
| 1 | 5346923 | ZIPPER BAG ASSY - PACKAGED |
| 2 | 77491 | DIRT TUBE & OVERMOLD ASSEMBLY |
| 3 | 49461B7 | HARDWARE PKG - COMM UPRIGHT |
| 5 | 47722 | SPRING - BAG |
| 6 | 48410 | SPRING - GARTER |
| 7 | 63213B | SYNTHETIC ST BAG |
| 8 | 53143 | SCREW PACKAGE (10) |
| 9 | 380532 | KNOB ASSEMBLY |
| 10 | 601921 | WIRE SPLICE 5 |
| 11 | 38067 | SEPARATOR ASSEMBLY |
| 12 | 5323814 | SCREW PACKAGE |
| 13 | 159422 | MOTOR CHANGE KIT (7AMP) |
| 14 | 546692 | SCREW PACKAGE |
| 15 | 532135 | NUTS - PACKAGE 10 |
| 16 | 53097 | SPRING - FOOT PEDAL PKG (5) |
| 17 | 53140 | CLAMP & SCREW ASSY PKG |
| 18 | 579009 | BASE ASSEMBLY - 12 INCH |
| 19 | 24964A1 | CAM (RIGHT) |
| 20 | 24965A1 | CAM (LEFT) |
| 21 | 53118 | RIVET - SHOULDER PACKAGE (10) |
| 22 | 53133 | STEEL WASHERS - PACKAGE 10 |
| 23 | 53122 | STRAIN RELIEF BUSHING - PKGD |
| 24 | 1477815R1 | HOOD & GRAPHICS ASSY |
| 25 | 137385 | SWITCH ASSEMBLY |
| 26 | 146601 | BUTTON - SWITCH |
| 27 | 37989 | CLIP - SWITCH |
| 28 | 30517A | GASKET - MOTOR SEAL |
| 29 | 24834A5 | PEDAL - FOOT |
| 30 | 37034 | SPRING - ADAPT RETAINER |
| 31 | 5323811 | SCREW PACKAGE |
| 32 | 36263 | COVER - WHEEL |
| 33 | 285041 | GUARD - FURNITURE |
| 34 | 53121 | PUSH NUT PACKAGE (10) |
| 35 | 26242119N | WHEEL - REAR |
| 36 | 53110 | WASHER - WHEEL PACKAGE (10) |
| 37 | 5323811 | SCREW PACKAGE |
| 38 | 35947A | AXLE - FRONT |
| 39 | 30563B | BELT - DRIVE (STYLE RD) |
| 40 | 53270A | DISTURBULATOR ASSEMBLY |
| 41 | 53158 | LOCK NUT PACKAGE |
| 42 | 26059A | CAP - COVER |
| 43 | 54256A1 | BEARING & RETAINER ASSEMBLY |
| 44 | 25937SAN | SHAFT - DISTURBULATOR |
| 45 | 465384 | TAPE - FOAM |
| 46 | 259221 | BOTTOM PLATE ASSEMBLY |
| 47 | 37183 | AXLE - REAR |
| 48 | 53201 | AXLE CLAMP - PACKAGED |
| 49 | 530762 | SPRING & AXLE PACKAGE (6) |
| 50 | 35859A1 | WHEEL - FRONT |
| 51 | 52282A4 | BRISTLE STRIP PACKAGE |
| 52 | 132363 | TUBE - DISTURBULATOR |
| 53 | 53184 | KLIPRING PACKAGE |
| 54 | 53138 | SCREWS-PKG 10 |
| 55 | 532134 | NUTS - PACKAGE 10 |
| 56 | 530885 | BALL BEARING - PACKAGE |
| 57 | 159422 | MOTOR CHANGE KIT (7AMP) |
| 58 | 467135 | TIE - CABLE (PURCHASED) |
| 59 | 531881 | WASHER PACKAGE |
| 60 | 53148 | WASHER - FAN PACKAGE (10) |
| 61 | 12988SAN | FAN BLOWER - MOTOR |
| 62 | 3529322 | GRIP - HANDLE |
| 63 | 53574A5 | CORD RETAINER SET |
| 64 | 53198A1 | HANDLE SCREW ASSY PACKAGE |
| 65 | 5237012 | CORD & TERMINAL ASSY-FB-50 |
| 66 | 381831SV | HANDLE SOCKET ASSEMBLY |
| 67 | 532135 | NUTS - PACKAGE 10 |
| 68 | 53145 | BOLT PACKAGE (10) |
| 69 | 53077SAN | SPRING - STRAIN RELIEF PKG (5) |
| 70 | 2532944SV | HANDLE ASSEMBLY (UPPER) |
| 71 | 126378 | TUBE - HANDLE (LOWER) |
| xx | 60161 | WHEEL & AXLE ASSY |
| xx | 541752 | ADAPTER - BAG |
| xx | 782211 | ZIPPER HANDLE CHAIN ASSEMBLY |
